Routing

A routing group is a reusable object that tells careCycle where to send a live call and, when applicable, what to do if the route is not answered. Create and configure the routing group first, then assign it to a Voice AI campaign, an Agent Queue campaign, the Receptionist, or more than one of those contexts.

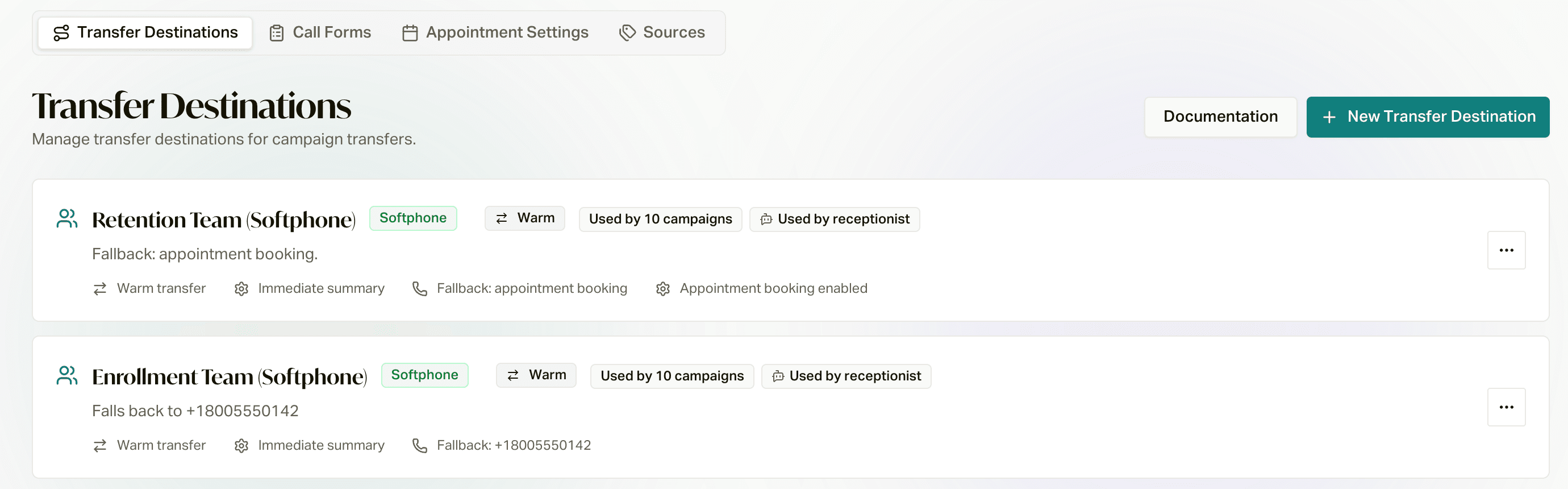

Manage routing groups under Configure > Routing. Use a clear name that identifies the queue or business purpose. Softphone routing groups also support an optional description for details such as hours, market, language, or intended call types.

Choose a Routing Type

Select New routing group, enter its name, choose a type, and create it. Creation provisions the routing group, but it is not ready for traffic until its required details are configured and saved.

Direct, Dynamic, and SIP routing groups transfer outside the careCycle softphone. They can use a cold handoff, or Warm Transfer to keep the caller connected during the handoff. A Dynamic routing group can send a GET or POST request, evaluate the response, read the transfer number from the configured field or a fixed number, and use its selected fallback when resolution fails.

Agent Queue campaigns require a Softphone routing group because it supplies the campaign's agents and routing policy. Other contexts can use the routing type supported by their transfer behavior.

Softphone Agent Routing

Each Softphone routing group owns an agent roster and routing policy, configured in Agent Routing. It determines which careCycle agents receive calls through the routing group.

Add organization members directly for Linear, Balanced, or Weighted routing. For Grouped routing, create ordered agent groups, add agents to each group, and choose a strategy within each group.

All four strategies route sequentially rather than ringing the entire pool at once. Entries disabled for routing are skipped. Configuration shows assigned members, not who is online right now. Enable the agents and groups that should participate when calls arrive.

Weighted routing uses relative weights, not percentages that must total 100. Four enabled agents with a weight of 100 each have a configured 25% share each. The displayed share estimates the chance of being tried first among enabled agents; actual routing also applies call-time eligibility.

Priority and Eligibility

Two optional overrides can run before the base routing strategy:

• Prioritize customer's assigned agent tries the agent associated with the customer record first.
• Prioritize the agent the customer last spoke to tries the agent who handled the customer's most recent softphone call first.

If both are enabled, arrange them in the order they should be attempted. A priority override does not make an unavailable or otherwise ineligible agent eligible. If the preferred agent cannot receive the call, normal pool routing continues.

Enable Only route to state-licensed agents when the customer's state must match an agent's licenses. If no licensed agent is available, choose whether to use the routing group's fallback immediately or remove the state filter and try all otherwise eligible agents.

Only agents who are active, online, Available, and eligible for the call can ring. Campaign participation and other call-specific eligibility rules still apply.

Ring Timing and Auto Answer

The answer window covers the whole sequence, so it can expire before every agent is attempted. If no eligible agent exists, careCycle proceeds to the applicable fallback immediately.

Organization-wide availability and Auto Answer settings live under Settings > Organization > Softphone Settings. Auto Answer is an agent or organization setting, not a routing group setting. If an Available agent has Auto Answer enabled, or the organization enforces it, the softphone joins the routed call without waiting for the agent to select Answer or Claim.

Handoff and Agent Workspace

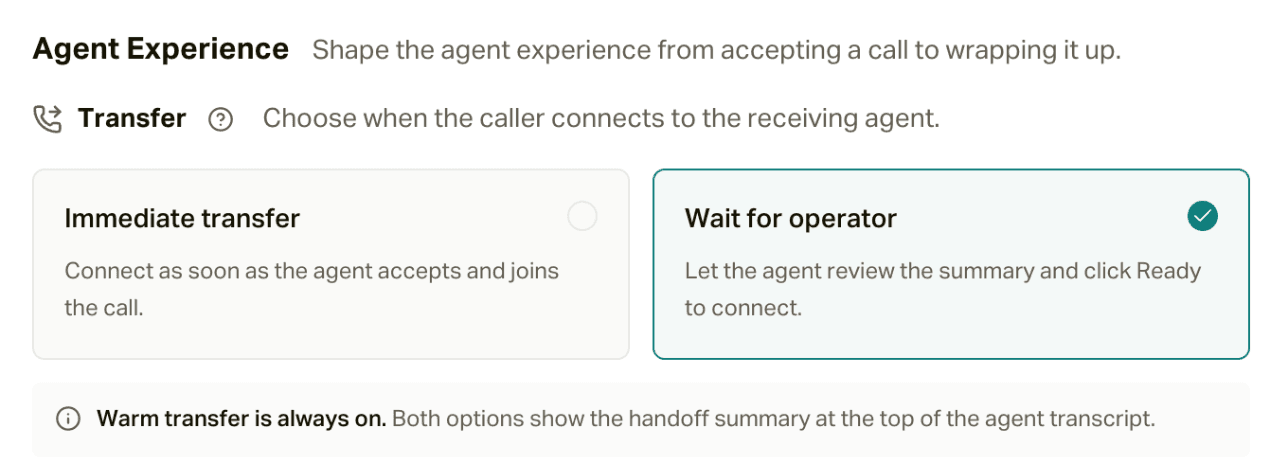

Softphone transfers are always warm: the caller remains connected while the receiving agent gets the handoff context. Choose one connection strategy:

• Immediate transfer connects the caller when the agent accepts and joins.
• Wait for operator lets the agent review the summary and select Ready before connecting the caller.

The handoff summary appears at the top of the agent transcript with either strategy.

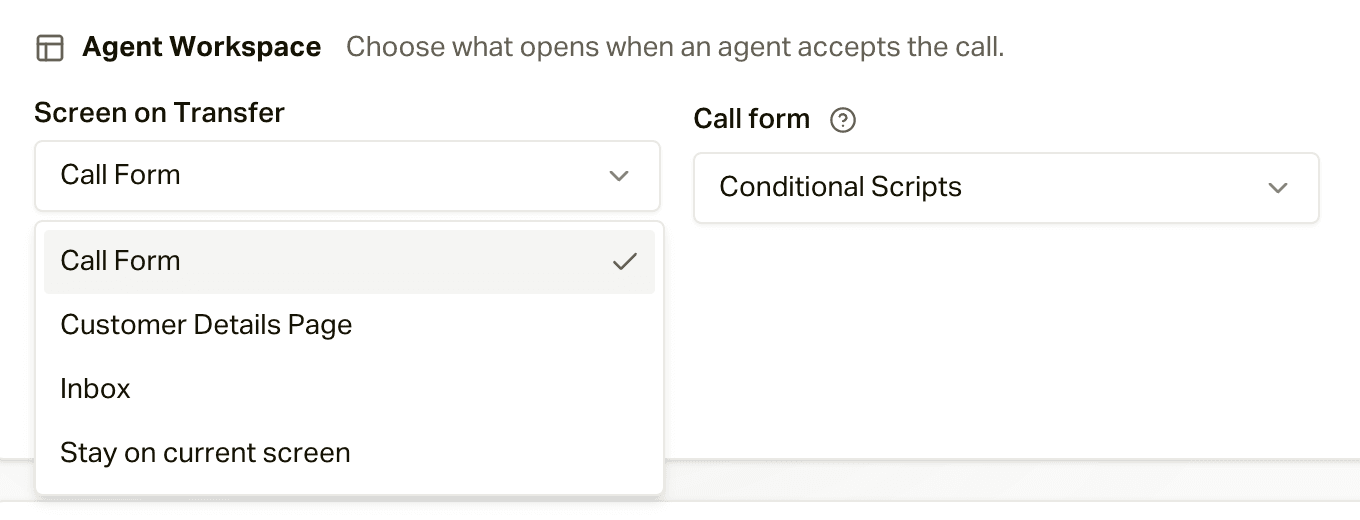

Screen on Transfer controls what opens when the agent accepts: Script, Customer Details Page, Inbox, or the current screen. If you choose Script, select a routing-group script or use the default script. This workspace choice also applies when Agent Queue outbound calls and requested callbacks reach an agent through the routing group.

What the agent actually sees

These two settings are easiest to understand from the agent's chair. With Wait for operator and Screen on Transfer: Call Form, a transfer goes like this:

1. The card rings. The agent sees who's calling, which campaign it came from, and a Time to claim countdown. They click Claim (or Pass).
2. The summary. Because of Wait for operator, the agent reads the AI's Warm Transfer Summary first, then clicks Start Call when ready. With Immediate transfer, this step is skipped and the caller is connected as soon as the agent claims.
3. The workspace opens to whatever Screen on Transfer says. With Call Form, that's the live call workspace with your form in the middle, already filled in with the member's details, and the transcript and other panels alongside.

If the agent has Auto Answer on (or your organization enforces it), steps 1 and 2 are skipped: the call is accepted for them and they land straight on step 3. The summary is still at the top of their transcript. See Working a Call for the full workspace.

Independent Fallbacks

The same routing group can be the target of a Voice AI transfer and supply the agents for an Agent Queue campaign. Configure its fallback settings independently, according to how the call reaches the routing group:

The two Agent Queue sections follow the actual call direction, not just the campaign's creation mode. An inbound call to an outbound dialer campaign uses the inbound settings. An outbound Pulse follow-up from an inbound desk campaign uses the outbound settings. Neither uses the Voice AI transfer fallback.

Voice AI Transfer Fallback

This section applies when a Voice AI campaign attempts to transfer a live call to this routing group. It does not select who initially answers an inbound number. If the routing group cannot supply an agent, choose one action:

• Appointment booking supplies the selected calendar to the AI fallback flow so it can offer appointment options.
• Phone number supplies the configured phone number as the alternate transfer target.
• None supplies no alternate transfer or appointment action. The calling flow handles the unavailable result.

These settings describe the Voice AI destination-unavailable path. They are not a promise to recover every provider, bridge, or connection failure. A failed bridge after a transfer has started can return the caller to the assistant instead of starting appointment booking. Appointment-origin handoffs also suppress appointment fallback to avoid sending a booked appointment back into booking.

Inbound Agent Queue Calls

A customer calls a number belonging to an Agent Queue campaign. During business hours, careCycle tries the agents in the routing group. If no agent is eligible, all candidates are exhausted, or the answer window expires:

• Play unavailable message speaks the business-hours message and ends the call.
• Offer a callback first offers an eligible caller the option to press 1. An accepted request receives a confirmation and the call ends. If no callback is scheduled, the inbound unavailable message plays and the call ends.

Outside business hours, ordinary unavailable handling skips agents and callback offers and plays the after-hours unavailable message. Existing configured AI answering follows the campaign's saved incoming policy instead.

Outbound Agent Queue Calls

Normal Agent Queue Pulse calls are dial-first: careCycle dials the customer, screens the answer, and then connects a live person to an agent. The Outgoing calls > Offer a callback switch controls the no-agent abandonment path after a person has answered.

• On: an eligible customer can press 1 to request a callback from this routing group's agents.
• Off, skipped, or not accepted: the no-agent path plays the standard system-managed no-agent message and ends the call. The call is recorded as abandoned and the customer returns to the campaign queue.

The no-agent message is fixed by careCycle, not configured on the campaign or destination: “We're sorry, all of our agents are currently busy. We'll call you back shortly. Goodbye.”

The campaign-configurable outgoing voicemail is available in Pulse > Global voicemail and individual Call steps. It applies when AMD detects an answering machine; a Pulse call step can inherit it, override it, or choose silent hangup. It does not replace the system-managed no-agent message spoken to a live person, or the routing group's business-hours and after-hours inbound unavailable messages.

Before the customer has been dialed, a lack of agent capacity waits or retries rather than presenting a callback offer. Technical setup failures can use their own failure message.

Shared Callback Policy and Messages

Inbound and outbound callback offers have independent switches but share the routing group's callback timing policy. Offers require an active Agent Queue campaign, the exact enabled routing group assignment and matching agent routing, a valid customer and phone number, no Do Not Call flag, and enough time before business closing. An existing pending callback is acknowledged instead of creating another request.

Callers press 1 to accept. No input or a different digit can replay the prompt up to five times, with a 7-second digit wait per play. If no request is scheduled, the original call follows its direction-specific exit: the inbound unavailable message or the system-managed outbound no-agent message.

The editor previews the enabled Inbound offer, Outbound offer, and shared Confirmation separately. The inbound default says agents are still helping other callers; the outbound default apologizes because the dialer called the customer. These scripts are read-only in the editor so the spoken instructions stay aligned with the press-1 controls.

The window must be at least Attempts x Retry delay. Actual callback expiry is limited by the closing buffer. Requested callbacks are accept-first: careCycle reserves an eligible agent before dialing the customer, and answering machine detection is not used. Normal outbound Agent Queue dialer calls remain dial-first and use answering machine detection before agents ring.

Inbound Unavailable Messages

These are the messages for inbound callers who do not connect to an agent or schedule a callback. A blank routing group field inherits the matching message from Settings > Organization > Softphone Settings > Unavailable messages. If that is also blank, careCycle uses the system default for that time window:

The inbound and outbound callback switches control human call fallback. They do not enable callback IVR on a Voice AI campaign transfer.

Dispositions and Wrap-Up

The routing group's Dispositions section defines the outcomes agents can choose after calls routed through that Softphone routing group. Add existing library dispositions or create the labels and outcome types the team needs. System dispositions remain available, and the organization defaults are used when no routing-group dispositions have been added.

After a call ends, the agent remains in wrap-up until selecting a disposition and choosing Save & go available. The outcome can drive reporting, compliance, and the next step in an Agent Queue Pulse. See Wrap-Up and Dispositions for the agent experience.

What Saves Where

The routing group editor has three save behaviors:

Selecting Save routing group does not save unsaved Agent Routing changes. Select Save routing after changing routing, even if you also saved the routing group. There is no final save required after a disposition action.

Recommended Setup Workflow

Readiness and Troubleshooting

• Not ready: complete the items shown in the routing group's Readiness panel. A Softphone routing group needs agent routing and a selected Voice AI fallback, even when a particular assignment will not use Voice AI fallback.
• No agents ring: verify the pool has agents enabled for routing, agents are online and Available, the campaign is active where required, and licensing filters are not excluding the whole pool.
• Fallback starts too soon: compare Ring Duration per Agent with the total Agent Answer Window. The overall window can end before all agents ring.
• The wrong screen opens: review Screen on Transfer and its selected script, then save the routing group.
• A routing edit did not take effect: return to Agent Routing and select Save routing. The top-level routing group save is separate.
• An unexpected campaign changed: check the usage in Routing group details. Shared routing groups apply changes to every assigned context. Create a separate routing group when a campaign needs independent routing or fallback behavior.
